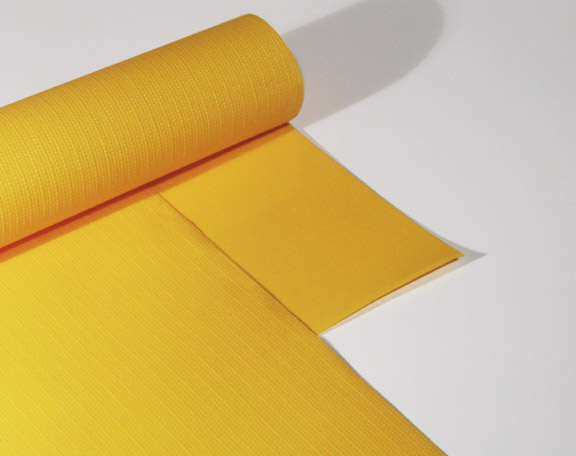

CT-PVC-15-1 - PVC COATED HIGH TENSILE FABRIC
FEATURES:
- Soft, high tensile, flexible and tear resistant
- Chemical, moisture, and UV resistant
- Hot air and wedge weldable
APPLICATION:
- Custom slit product: Flexible duct production for permanent and temporary ventilation and air conditioning.
- Full size rolls: Welded and sewed tents, banners, truck covers, and boat covers.
| PROPERTIES | Values (Metric) | Values (English) |
|---|---|---|
| Construction | Base fabric: 500 x 500D 72 x 68 counts/100 mm, knitted Both sides PVC coated |
Base fabric: 500 x 500D 18 x 17 counts/inch, knitted Both sides PVC coated |
| Thickness | 0.45 mm | 17.7 mil |
| Total area weight | 500 g/m2 | 15 oz/yard2 |
| Tensile strength (MD) | 1.52 kN/50mm | 168 lbs/inch |
| Tensile strength (TD) | 1.55 kN/50mm | 171 lbs/inch |
| Elongation at break (MD) | 29.5% | 29.5% |
| Elongation at break (TD) | 35% | 35% |
| Tearing strength (MD) | 214.8 N | 48.3 lbs |
| Tearing strength (TD) | 276.5 N | 62.2 lbs |
| Adhesion Strength (MD) | 74.5 N/50mm | 16.7 lbs/2inch |
| Adhesion Strength (TD) | 70.6 N/50mm | 15.8 lbs/2inch |
| Roll width | Custom: 25-200mm Jumbo roll: 1.46m |
Custom: 1-8" Jumbo roll: 57.5" |
| Roll length | 200m custom roll length is available |
219 yards custom roll length is available |
| Color | white, yellow, grey custom colors are available |
|
| Optional treatments | Anti static, flame retardant, other treatments by special request | |
