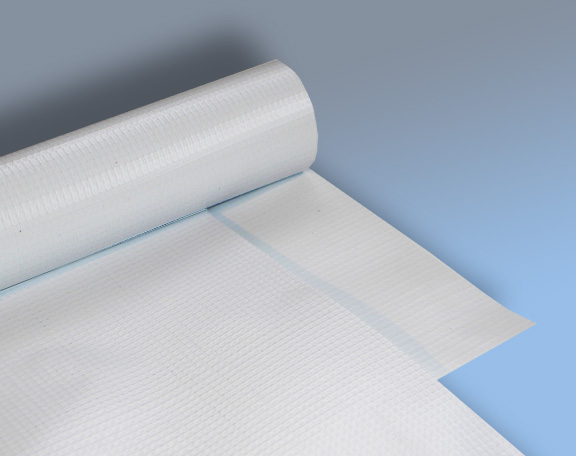

CT-PVC-10-1 - PVC LAMINATED FABRIC
FEATURES:
- Strong and flexible
- Chemical, moisture, and UV resistant
- Hot air and wedge weldable
APPLICATION:
- Custom slit product: Flexible duct production for permanent and temporary ventilation and air conditioning
- Full size rolls: Welded and sewed tents and shelters, boat covers, banners
| PROPERTIES | Values (Metric) | Values (English) |
|---|---|---|
| Construction | Base fabric: 500 x 500D 36 x 36 counts/100 mm, knitted Both sides PVC hot lamination |
Base fabric: 500 x 500D 9 x 9 counts/inch, knitted Both sides PVC hot laminated |
| Thickness | 0.32 mm | 12.6 mil |
| Total area weight | 340 g/m2 | 10.0 oz/yard2 |
| Tensile strength (MD) | 745 N/50mm | 83.7 lbs/inch |
| Tensile strength (TD) | 642 N/50mm | 72.2 lbs/inch |
| Elongation at break (MD) | 26% | 26% |
| Elongation at break (TD) | 24% | 24% |
| Tearing strength (MD) | 142 N | 31.9 lbs |
| Tearing strength (TD) | 121 N | 27.1 lbs |
| Adhesion Strength (MD) | 99 N/50mm | 22.3 lbs/2inch |
| Adhesion Strength (TD) | 98 N/50mm | 22.0 lbs/2inch |
| Roll width | Custom: 25-200mm Jumbo roll: 1.46m |
Custom: 1-8" Jumbo roll: 57.5" |
| Roll length | 200m custom roll length is available |
219 yards custom roll length is available |
| Color | white, yellow, grey custom colors are available |
|
| Optional treatments | Anti static, flame retardant, other treatments by special request | |
