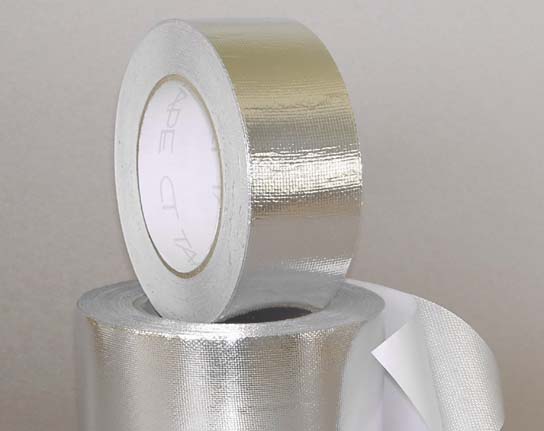

CT-FFC-0711 - SELF-ADHESIVE FIBERGLASS MESH REINFORCED ALUMINUM FOIL TAPE
FEATURES:
- Flame retardant acrylic adhesive
- Very high tensile and tear strength
- Excellent reflection of heat and light
- Excellent vapor barrier
APPLICATION:
- To seal joints of aluminum-glass facing laminated fiberglass blanket/duct board joints, industrial pipe insulation seams.
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Backing Thickness | 120 micron | 4.8 mil | PSTS-133 / ASTM D 3652 |
| Total Thickness | 170 micron | 6.8 mil | PSTS-133 / ASTM D 3652 |
| Peel Adhesion to Steel | 18 N/25mm | 64.8 Oz/inch | PSTC-101 / ASTM D 3330 |
| Rolling Tack | 15 cm | 6 inch | PSTC-6 / ASTM D 3121 |
| Tensile strength | 255 N/25mm | 58 Lb/inch | PSTC-131 / ASTM D 3759 |
| Elongation | 5 % | 5 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ∼ +120 °C | -22 ∼ + 248 °F | ---------- |
| Fire Rating | 25/50 & Class 0 | 25/50 & Class 0 | UL 723 & BS476 Pt. 6 & 7 |
| Core I.D. | 76 mm | 3" | |
| Roll width | 48 mm, 50 mm (2"), 60 mm, 63 mm (2.5"), 72 mm, 75 mm (3"), 96 mm, 100 mm (4") | ||
| Roll length | 45 m (50 yards), 50 m | ||
