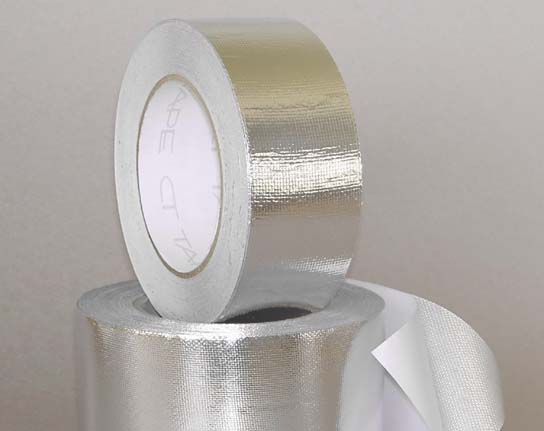

CT-FFC-1811CW-arctic - COLD WEATHER ADHESIVE FIBERGLASS MESH REINFORCED ALUMINUM FOIL TAPE

FEATURES:
  • Flame retardant acrylic adhesive
  • Very high tensile and tear strength
  • Excellent reflection of heat and light
  • Excellent vapor barrier
APPLICATION:
  • To seal joints of aluminum-glass facing laminated fiberglass blanket/duct board joints, industrial pipe insulation seams.
  • As a cladding material for the insulation in the full roll width
Properties Metric English METHOD
Backing Thickness 125 micron 5 mil PSTS-133 / ASTM D 3652
Total Thickness 180 micron 7.2 mil PSTS-133 / ASTM D 3652
Peel Adhesion to Steel 16 N/25mm 58 Oz/inch PSTC-101 / ASTM D 3330
Rolling Tack 5 cm 2 inch PSTC-6 / ASTM D 3121
Tensile strength 255 N/25 mm 58 Lb/inch PSTC-131 / ASTM D 3759
Elongation 5 % 5 % PSTC-131 / ASTM D 3759
Service Temperature -30 ∼ +120 °C -22 ∼ + 248 °F ----------
Fire Rating 25/50 & Class 0 25/50 & Class 0  UL 723 & BS476 Pt. 6 & 7
Core I.D.  76 mm 3"
Roll width  48 mm, 50 mm (2"), 60 mm, 63 mm (2.5"), 72 mm, 75 mm (3"), 96 mm, 100 mm (4")
Roll length  45 m (50 yards), 50 m
