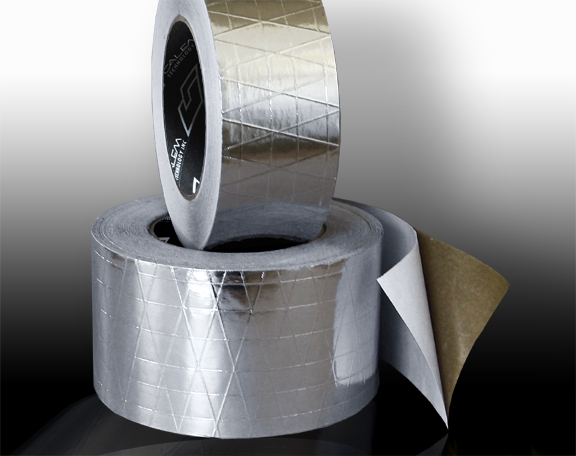

CT-FSK-0710-50A - PROFESSIONAL SELF-ADHESIVE FOIL SCRIM KRAFT TAPE
FEATURES:
- Excellent adhesion
- All weather solvent acrylic adhesive
- Good water vapor resistance
APPLICATION:
- To seal joints of insulation facing in duct fabrication, ventilation, refrigeration, and construction industry
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Foil Scrim Kraft Backing | 120 micron | 4.8 mil | PSTS-133 / ASTM D 3652 |
| Total Thickness (Foil + Adhesive) | 170 micron | 6.8 mil | PSTS-133 / ASTM D 3652 |
| Peel Adhesion to Steel | 20 N/25mm | 72 Oz/inch | PSTC-101A / ASTM D3330 A |
| Rolling Tack (11mm ball) | 15 cm | 6 inch | PSTC-6 / ASTM 3121 |
| Tensile strength | 120 N/25mm | 27.3 Lb/inch | PSTC-131 / ASTM D 3759 |
| Elongation | 1 % | 1 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ∼ +80 °C | -22 ∼ + 176 °F | ---------- |
| Core I.D. | 76 mm | 3" | |
| Roll width | 48 mm, 50 mm (2"), 60 mm, 63 mm (2.5"), 72 mm, 75 mm (3"), 96 mm, 100 mm (4") | ||
| Roll length | 45 m (50 yards), 50 m | ||
|
Jumbo roll size (special sizes of jumbo or log rolls are also available) |
1200mm x 750 - 850 m | ||
