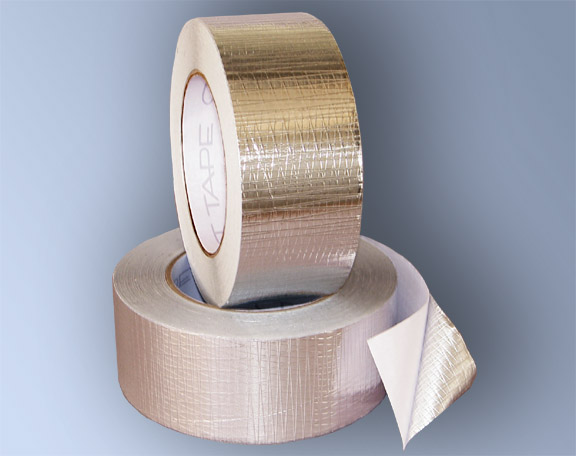

CT-FP-0710A - SELF-ADHESIVE POLYESTER (PE) MESH REINFORCED ALUMINUM FOIL TAPE
FEATURES:
- Malleable and strong
- Acrylic adhesive
- Excellent reflection of heat and light
- Good water vapor resistance
APPLICATION:
- To seal joints of Foil-PE Mesh laminated fiberglass blanket/duct board/pipe section joints and seams
- To join and seal flexible air duct connections.
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Backing Thickness | 125 micron | 5.0 mil | PSTS-133 / ASTM D 3652 |
| Total Thickness | 175 micron | 7.0 mil | PSTS-133 / ASTM D 3652 |
| Peel Adhesion to Steel | 20 N/25mm | 72 Oz/inch | PSTC-101 / ASTM D 3330 |
| Rolling Tack | 15 cm | 5.0 inch | PSTC-6 / ASTM D 3121 |
| Tensile strength | 100 N/25mm | 22.7 Lb/inch | PSTC-131 / ASTM D 3759 |
| Elongation | 25 % | 25 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ∼ +120 °C | -22 ∼ + 248 °F | ---------- |
| Core I.D. | 76 mm | 3" | |
| Roll width | 48 mm, 50 mm (2"), 60 mm, 63 mm (2.5"), 72 mm, 75 mm (3"), 96 mm, 100 mm (4") | ||
| Roll length | 45 m (50 yards), 50 m | ||
