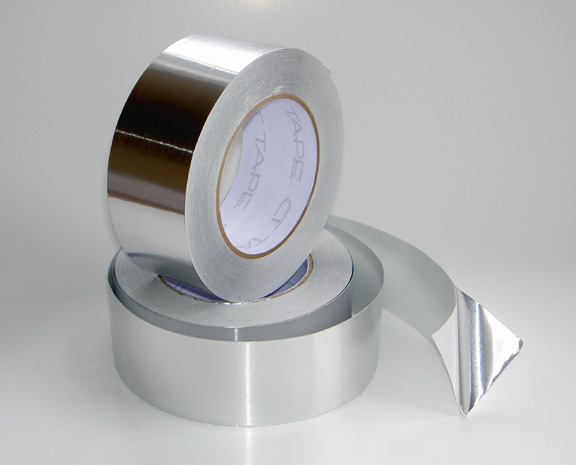

CT-F5011 - PROFESSIONAL FLAME RETARDANT SELF-ADHESIVE ALUMINUM FOIL TAPE
FEATURES:
- Flame retardant acrylic adhesive
- Strong adhesion and holding power
- Temperature and aging resistance
- Excellent reflection of heat and light
- Good water vapor resistance
APPLICATION:
- To seal joints of metal ducts and insulation facings in ventilation and construction industries
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Foil Thickness | 50 micron | 2 mil | PSTS-133 / ASTM D 3652 |
| Total Thickness (Foil + Adhesive) | 90 micron | 3.6 mil | PSTS-133 / ASTM D 3652 |
| Peel Adhesion to Steel | 20 N/25 mm | 72 Oz/inch | PSTC-101 / ASTM D 3330 |
| Rolling Tack (11 mm ball) | 15 cm | 6 inch | PSTC-6 / ASTM D 3121 |
| Tensile strength | 75 N/25 mm | 17 Lb/inch | PSTC-131 / ASTM D 3759 |
| Elongation | 3.5% | 3.5% | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ~+ 120 oC | -22 ~+ 248 oF | ---------- |
| Core I.D. | 76 mm | 3" | |
| Fire Rating | 25/50 & Class 0 | 25/50 & Class 0 | UL 723 & BS476 Pt. 6 & 7 |
| Roll width | 48 mm, 50mm (2"), 60 mm, 63 mm (2.5"), 72 mm, 75 mm (3"), 96 mm, 100 ,, (4") | ||
| Roll length | 27 m (30 yards), 30 m (100'), 45 m (50 yards), 50 m, 100 m | ||
