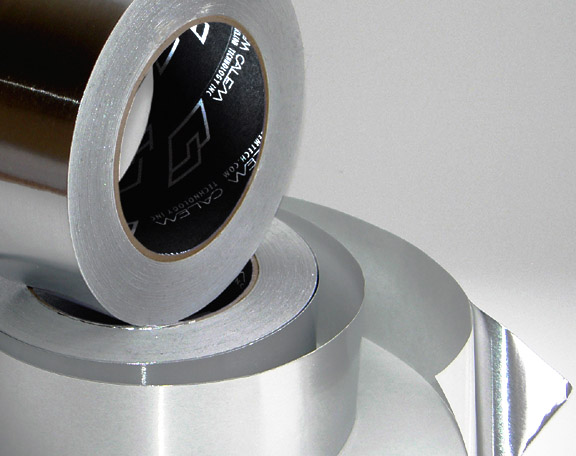

CT-F3010 - PROFESSIONAL GRADE SELF ADHESIVE ALUMINUM FOIL TAPE
FEATURES:
- Acrylic adhesive
- Strong adhesion and holding power
- Temperature and aging resistance
- Excellent reflection of heat and light
- Good water vapor resistance
APPLICATION:
- To seal joints of metal ducts and insulation facings in ventilation and construction industry
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Foil Thickness | 30 micron | 1.2 mil | PSTS-133 / ASTM D 3652 |
| Total Thickness (Foil + Adhesive) | 70 micron | 2.8 mil | PSTS-133 / ASTM D 3652 |
| Peel Adhesion to Steel | 20 N/25mm | 72 Oz/inch | PSTC-101 A/ ASTM D3330 A |
| Rolling Tack (11 mm ball) | < 10 cm | < 6 inch | PSTC-6 / ASTM D 3121 |
| Tensile strength | 45 N/25 mm | 10.2 Lb/inch | PSTC-131 / ASTM D 3759 |
| Elongation | 3% | 3% | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ∼ +120 °C | -22 ∼ + 248 °F | ---------- |
| Core I.D. | 76mm | 3” | |
| Roll width | 48mm, 50mm (2"), 60mm, 63mm (2.5"), 72mm, 75mm (3"), 96mm, 100mm (4") |
||
| Roll length | 27m (30 yards), 30m (100’), 45m (50 yards), 50m, 100m | ||
