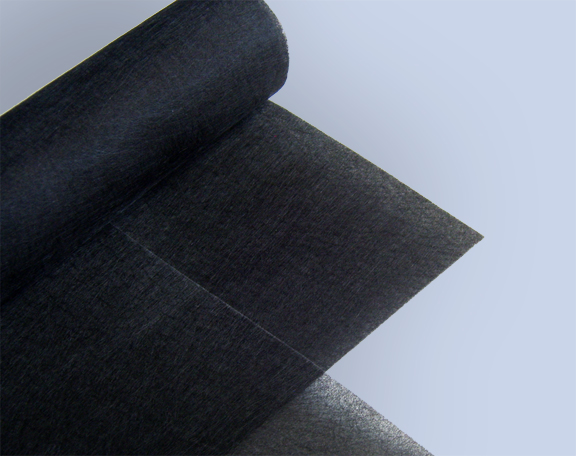

CT-FGT60-B - FIBER GLASS TISSUE BLACK
FEATURES:
- acoustically transparent, light weight
- Flame retardant, non bio-degradable
- Provides reinforcement and dimensional
- Compatibility with bitumen and asphalt, Uniform coating
- Provides support to insulation material, superior strength
- Free of decabromodiphenyl
APPLICATION:
- Insulation facing for duct boards, acoustic lining of ducts, wrapping and coating for pipe protection, reinforcement membrane in waterproofing
| PROPERTIES | Values (Metric) | Values (English) |
|---|---|---|
| Nominal Area weight | 60 g/sq.m | 0.2 oz/q.ft |
| Nominal Thickness | 0.35 mm | 13.7 mil |
| Tensile Strength (MD) | 2.1 kN/m | 12 lbf/inch |
| Tensile Strength (XD) | 2.0 kN/m | 11.2 lbf/inch |
| Fiber Type | E-Glass | E-Glass |
| Binder Type | Acetic ester binder | Acetic ester binder |
| Binder content (nominal) | 20 % | 20 % |
| Moisture content | <0.1 % | <0.1 % |
| Temperature Resistance | 250 oC | 482oF |
| UV resistance | UV resistant | UV resistant |
| Flame retardancy | pass | pass |
| Core I.D. | 76 mm | 3" |
| Standard Roll width | 1.5 m | 59" |
| Roll length (max) | 1500m (max) | 1640 yard |
