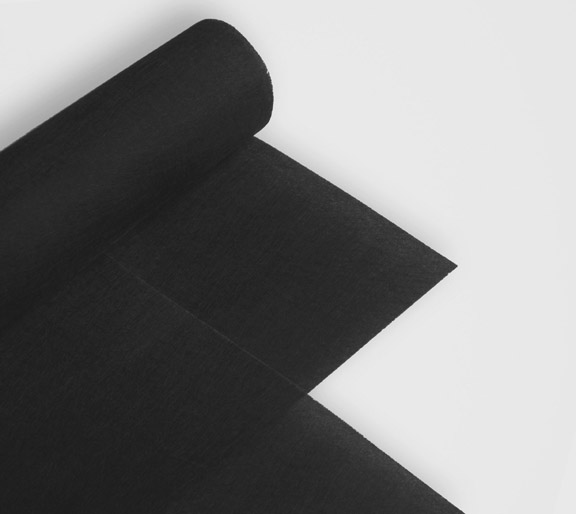

CT-FGT100-B - FLAME RETARDANT BLACK FIBERGLASS TISSUE FACING MAT
FEATURES:
- Strong & acoustically transparent
- Flame retardant, non bio-degradable
- Deca-Bromine free
- Provides reinforcement and dimensional stability
- Compatibility with bitumen and asphalt, Uniform coating
- Provides support to insulation material, extra strength
APPLICATION:
- Insulation surface acoustical facing for duct boards, acoustic lining of ducts, wrapping and coating for pipe protection, reinforcement membrane in waterproofing
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Nominal area weight | 100 g/sq.m +/- 5% | 0.33 oz/q.ft +/- 5% | ASTM C167 |
| Nominal Thickness | 0.6 +/- 0.05 mm | 24 +/- 2.4 mil | ASTM C167 |
| Tensile Strength (MD) | 3.2 kN/m +/- 10% | 288 ozF/inch +/- 10% | ASTM D828-97 |
| Tensile Strength (XD) | 3.0 kN/m +/- 10% | 270 ozF/inch +/- 10% | ASTM D828-97 |
| Fiber type | E-Glass | E-Glass | --- |
| Binder Type | Acetic ester binder | Acetic ester binder | --- |
| Binder content | 15-18% +/- 10% | 15-18% +/- 10% | --- |
| Moisture content | <0.1% | <0.1% | ASTM C1616 |
| Temperature Resistance | 200 oC -15% | 392 oF -15% | ASTM C447 |
| UV resistance | UV resistant | UV resistant | ASTM G155 |
| Flame retardancy | pass | pass | ISO 15025 A,B |
| Core I.D. | 76 mm | 3" | --- |
| Roll width | 1.2 m | 47.2" | --- |
| Roll length | 1500 m (max) | 1640 yard | --- |
