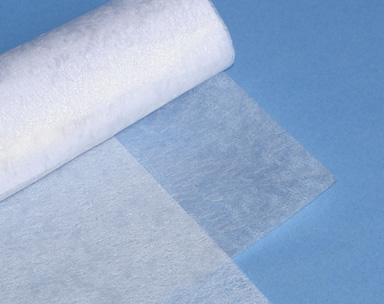

CT-FGT50.1 - WHITE FIBER GLASS TISSUE FACING AND REINFORCEMENT MEMBRANE
FEATURES:
- Withstand corrosion, non bio-degradable
- Acoustically transparent material
- Provides reinforcement and dimensional stability
- Compatibility with adhesives, bitumen and asphalt, uniform coating
- Provides support to insulation material, superior strength
APPLICATION:
- Fiber glass veil mat (Insulation facing) for duct boards and wraps
- Acoustic lining of ducts - duct liner
- Wrapping and coating for pipe protection
- Reinforcement membrane as roofing felt for waterproofing
| PROPERTIES | Values (Metric) | Values (English) |
|---|---|---|
| Area weight | 50 g/sq.m | 0.16 oz/ sq.ft |
| Nominal Thickness at 2 Lb/inch2 | 0.36 mm | 0.014 inch |
| Longitudinal Tensile Strength | 3.6 kN/m | 328 oz/inch |
| Transverse | 1.6 kN/m | 146 oz/inch |
| Fibre Diameter | 13 micron | 0.5 mil |
| Glass Type | E-glass | E-glass |
| Binder Type | Urea Formaldehyde | Urea Formaldehyde |
| Binder content (max) | 25% | 25% |
| Temperature Resistance | 200 oC | 392 oF |
| Core I.D. | 152mm | 6" |
| Standard Roll width | 1m | 39.4" |
| Roll length (max) | 2800m | 3062 yard |
