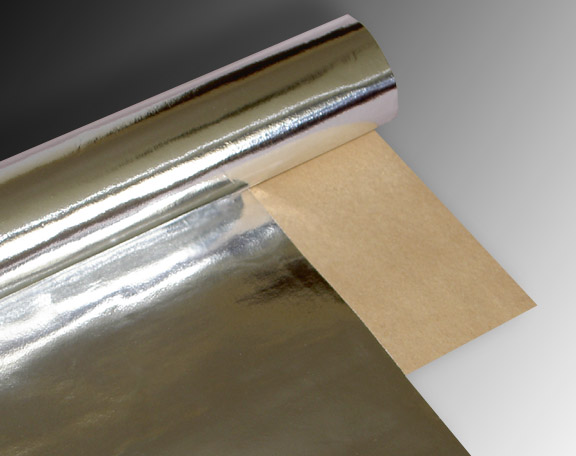

CT-FK-0750 thermo - INSULATION FOIL KRAFT FACING & VAPOR RETARDER, HEAT ACTIVATED ADHESIVE
FEATURES:
- High heat reflection, low emissivity
- Good vapor barrier
- Heat activated adhesive, clean and convenient industrial application
- Available with perforation for production of acoustical boards and breathable reflective insulation
- Light to medium duty
APPLICATION:
- CT-FK0750 thermo can be used as insulation facing - vapor retarder and radiant barrier for different types of insulation
- Heat activated adhesive for clean, fast and convenient application without liquid glue

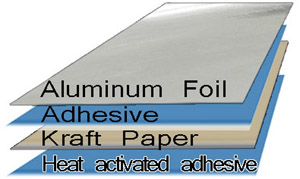

| Facing Composition | Description | Values (English) | Values (Metric) |
|---|---|---|---|
| Foil | Aluminum | 0.28 mil | 7 micron |
| Adhesive | PE | ------ | ------ |
| Kraft | Natural | 30 lbs / 3000 ft2 | 50 g/ m2 |
| Adhesive | PE | 1.0 mil | 25 micron (18-20 g/sq.m) |
| Physical properties | Metric | English | METHOD |
|---|---|---|---|
| Basis weight (area weight) | 90 g/sq.m | 18.5 lbs / 1000 ft2 | Scale |
| Permeance (WVTR) | 1.15 ng/N.s | 0.02 perm | ASTM E96, procedure A |
| Tensile strength - MD | 85 N/ 5mm | 19.0 lbs/in | ASTM D828 |
| Tensile strength - XD | 45 N/ 5mm | 10 lbs/in | ASTM D828 |
| Bursting strength | 25 N/cm2 | 36.5 psi | ASTM D774 |
| Low temp. resistance | Remains flexible, No delamination | Remains flexible, No delamination | ASTM D1790, 4 hrs @ -29oF (-34oC) |
| High temp. resistance | Remains flexible, No delamination | Remains flexible, No delamination | ASTM D1790, 4 hrs @ +150o F (-65oC) |
| Dimensional stability | less than 0.5% | less than 0.5% | ASTM D1204 @ 150oF (65oC) |
| Available roll width | 1.0m, 1.2m, 1.25m, 1.30m | 39.4”, 47”, 49.21”, 51.2” | |
| Roll length | by order | ||
BENEFITS of dry (heat) lamination technology:
- simplify and speed up lamination process,
- make production cleaner and greener (environment friendly) by elimination of liquid glue
- the dry (heat) lamination can be used for the higher FR paperless insulation facings as well as traditional paper based insulation facings
- allow to make heat reflective acoustical boards and duct wrap by using perforated materials
- allow to manufacture breathable glasswool insulation with reflective properties, which is extremely important for the hot/cold climate
