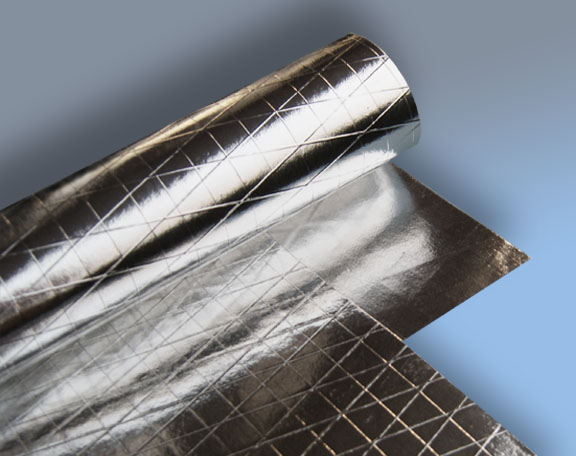

CT-FOIL-410A - RADIANT BARRIER AND VAPOR RETARDER
FEATURES:
- Double side reflective
- Heavy duty radiant barrier and vapour retarder
- Kraft, tri-directional fiberglass reinforced
APPLICATION:
Heavy duty reflective insulation (radiant barrier) and vapour retarder. May be used in combination with different types of fiberglass, mineral wool, and foam insulation.
| Product Composition | Description | Values (English) | Values (Metric) |
|---|---|---|---|
| Foil | Aluminum | 0.28 mil | 7 micron |
| Reinforcing | Tri-directional Fiberglass | 2 / inch (MD) 3 / inch (XD) |
8 / 100mm 12 / 100mm |
| Adhesive | Polyethylene | ------ | ------ |
| Kraft | Natural | 60 lbs / 3000 ft2 | 100 g/ m2 |
| Adhesive | Polyethylene | ------ | ------ |
| Foil | Aluminum | 0.28 mil | 7 micron |
| Physical Properties | Test Method | Values (English) | Values (Metric) |
|---|---|---|---|
| Basis Weight | Scale | 34.8 lbs / 1000 ft2 | 170 g/ m2 |
| Permeance (WVTR) | ASTM E96, Procedure A | 0.02 perm | 1.15 ng/N.s |
| Tensile Strength - MD | ASTM D828 | 58 lbs/In | 255 N/25mm |
| Tensile Strength - XD | ASTM D828 | 29.5 lbs/In | 130 N/25mm |
| Bursting Strength | ASTM D774 | 79.8 psi | 55 N/cm2 |
| Low Temperature Resistance | ASTM D1790 4 hrs @-40 °F (- 40 °C) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
| High Temperature Resistance | ASTM D1790 4 hrs @ +240 °F (+116 °C) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
| Dimensional Stability | ASTM D1204 @ 150°F (65°C) | Less than 0.5% | Less than 0.5% |
| Emissivity | ASTM E408 | 0.03 | 0.03 |
| Available Roll Width | --- | 49.2", 53.1" | 1.25m, 1.35m |
