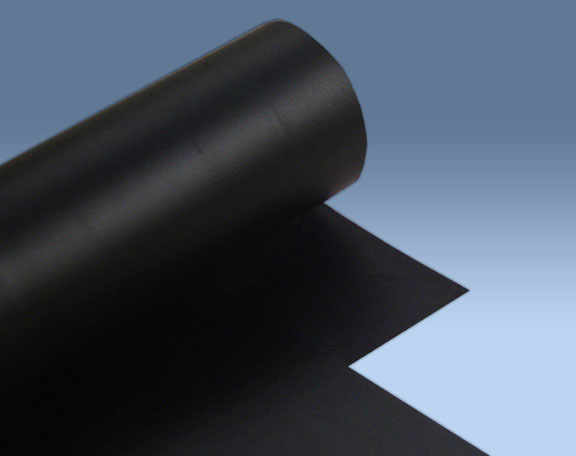

CT-TPR-15-1 - TPR COATED HIGH ABRASION RESISTANCE RUBBER FABRIC

FEATURES:
  • Temperature resistant
  • High Abrasion resistant
  • Heavy duty, EPDM rubber coated fabric
  • Chemical and moisture resistant
  • Hot air and wedge weldable



APPLICATION:
  • Custom slit product: Flexible duct production for permanent and temporary ventilation.
  • Full size rolls: Weldable water proof rubber fabric membrane in roofing and construction applications.
en/products/production-materials/tpr-and-epdm-fabric/tpr-coated-ct-tpr-15-1-fabric-heavy-duty/ - CT-TPR-15-1 - TPR COATED HEAVY DUTY RUBBER FABRIC
PROPERTIES Values (Metric) Values (English)
Construction

Base fabric: 70 g/sq.m
woven polyester
Both sides TPR coated

 Base fabric: 2 oz / yd2
woven polyester
Both sides TPR coated
Thickness 0.53 mm 21 mil
Total  area weight 510 g/m2 15 oz/yard2
Tensile (breaking) strength (MD) 445 N/50mm 50 lbs/inch
Tensile (breaking) strength (TD) 445 N/50mm 50 lbs/inch
Tear strength (MD) 44 N 10 lbs
Tear strength (TD) 44 N 10 lbs
Adhesion Strength 40 N/50mm 9 lbs/2in
Abrasion Resistance 2500 cycles to fabric 2500 cycles to fabric
Temperature resistance 135 oC 275 oF
Roll width Custom: 37-200mm
Jumbo roll: 1.42m		 Custom: 1.5-8"
Jumbo roll: 56"
Roll length 200m
custom roll length is available		 219 yards
custom roll length is available
Color Black (standard)
custom colors are available
Optional treatments Anti static, flame retardant, UV resistant treatments are available by special request
