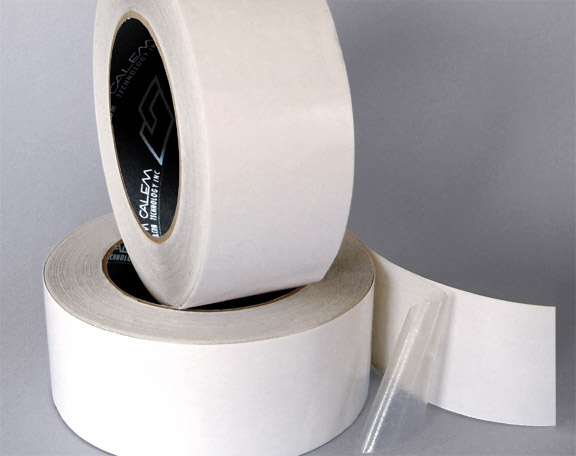

CT-DP1220 - DOUBLE SIDED TAPE
FEATURES:
- Aggressive synthetic rubber adhesive
- High peel adhesion
- Strong initial tack
- Temperature and aging resistance
APPLICATION:
- Aggressive adhesive designed to seal foam, foils, paper based and plastic film surfaces. For production, packaging and mounting
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Total Thickness | 120 Micron | 4.7 mil | PSTS-133 / ASTM D 3652 |
| Peel Adhesion to Steel | 20 N/25mm | 72 Oz/inch | PSTC-101 / ASTM D 3330 |
| Rolling Tack (11 mm ball) | 15 cm | 6 inch | PSTC-6 / ASTM D 3121 |
| Tensile strength | 40 N/25 mm | 9.1 Lb/inch | PSTC-131 / ASTM D 3759 |
| Elongation | 3.5 % | 3.5 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -20 ∼ +100 °C | -4 ∼ + 212 °F | ---------- |
| Core I.D. | 76mm | 3” | |
| Roll width | 48mm, 50mm (2"), 60mm, 63mm (2.5"), 72mm, 75mm (3"), 96mm, 100mm (4") |
||
| Roll length | 27m (30 yards), 30m (100’), 45m (50 yards), 50m, 100m | ||
