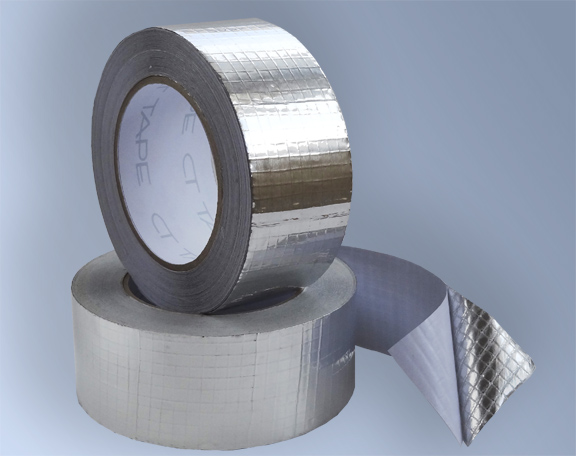

CT-FF-2520-B5 - SELF-ADHESIVE FIBERGLASS MESH REINFORCED ALUMINUM FOIL TAPE
FEATURES:
- Very high tensile and tear strength
- Aggressive rubber adhesive
- Temperature and aging resistance
- Excellent reflection of heat and light
- Good water vapor resistance
APPLICATION:
- To seal joints of insulation facings with bi-directional reinforcement or duct joints in ventilation and construction industry
| Properties | Metric | English | METHOD |
|---|---|---|---|
| Foil Thickness | 25 micron | 1.0 mil | PSTS-133 / ASTM D 3652 |
| Total Thickness (Backing + Adhesive) | 90 micron | 3.6 mil | PSTS-133 / ASTM D 3652 |
| Peel Adhesion to Steel | > 20 N/25mm | > 72 Oz/inch | PSTC-101 / ASTM D 3330 |
| Rolling Tack (11mm ball) | 20 cm | 7.9 inch | PSTC-6 / ASTM D 3121 |
| Tensile strength | 120 N/25mm | 27.3 Lb/inch | PSTC-131 / ASTM D 3759 |
| Elongation | 3 % | 3 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -20 ∼ +80 °C | -4 ∼ + 176 °F | ---------- |
| Core I.D. | 76 mm | 3" | |
| Roll width | 48 mm, 50 mm (2"), 60 mm, 63 mm (2.5"), 72 mm, 75 mm (3"), 96 mm, 100 mm (4") | ||
| Roll length | 45 m (50 yards), 50 m | ||
